Products/Carbon Fiber/Unidirectional Carbon Fiber Fabric — 600g/m²
Carbon Fiber · CF-UNI-600Technical specificationsCF-UNI-600Rev 2026

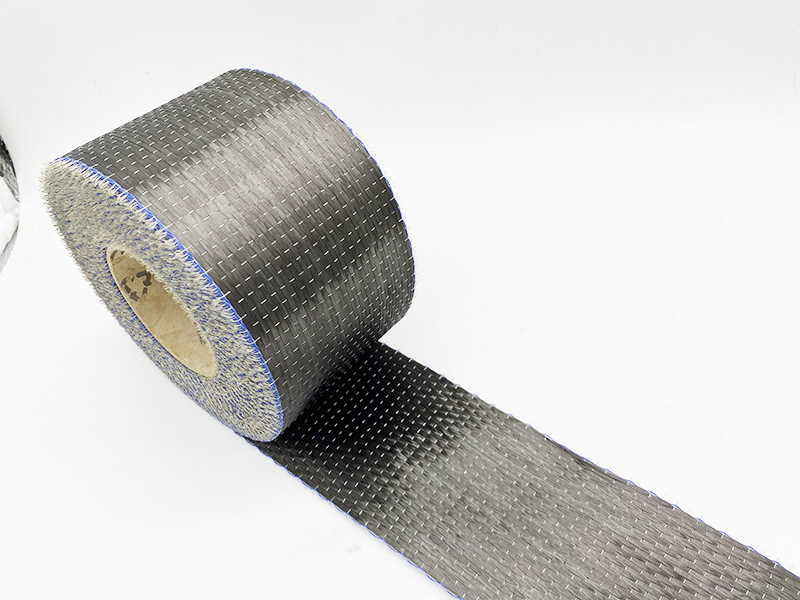

Unidirectional Carbon Fiber Fabric — 600g/m²
Maximum-weight unidirectional carbon fiber fabric at 600 g/m². The thickest single-layer fabric in our range at 0.333mm, ideal for large-scale civil engineering projects requiring extreme reinforcement.
Large-span bridge girdersHydraulic dam reinforcementHeavy industrial structures
| Areal Weight | 600 g/m² |
| Design Thickness | 0.333 mm |
| Tensile Strength | ≥ 3,800 MPa |
| Elastic Modulus | ≥ 230 GPa |
| Elongation | ≥ 1.6% |
| Density | 1.8 g/cc |
| Fiber Type | 12K Carbon Fiber |
| Weave | Unidirectional |
| Width | 300 / 500 mm |
Use with XINCHOR matched system components for full performance. TDS and MSDS available on request.
