Products/Carbon Fiber/Unidirectional Carbon Fiber Fabric — 450g/m²
Carbon Fiber · CF-UNI-450Technical specificationsCF-UNI-450Rev 2026

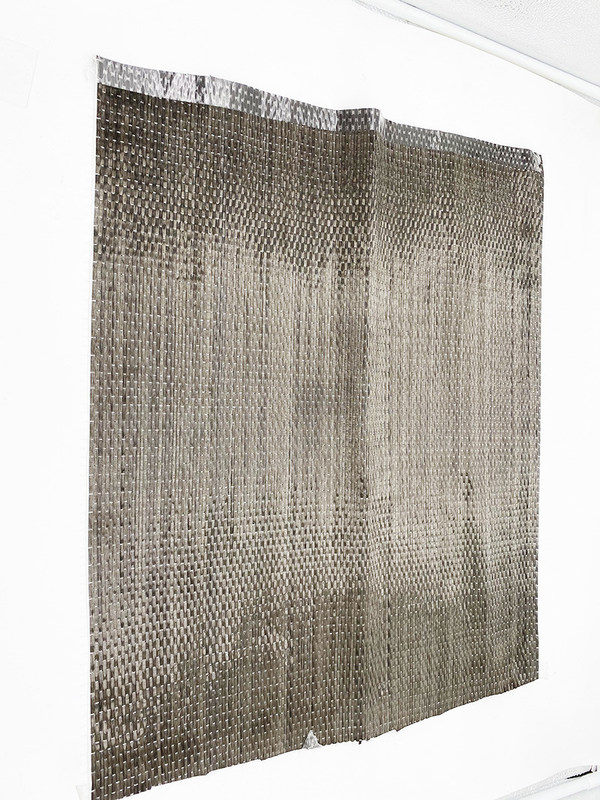

Unidirectional Carbon Fiber Fabric — 450g/m²
Heavy-weight unidirectional carbon fiber fabric at 450 g/m² for high-load structural reinforcement. 0.251mm design thickness reduces the number of layers needed.
Heavy-load beam strengtheningIndustrial structure reinforcementPier column confinement
| Areal Weight | 450 g/m² |
| Design Thickness | 0.251 mm |
| Tensile Strength | ≥ 3,400 MPa |
| Elastic Modulus | ≥ 230 GPa |
| Elongation | ≥ 1.6% |
| Density | 1.8 g/cc |
| Fiber Type | 12K Carbon Fiber |
| Weave | Unidirectional |
| Width | 200 / 300 / 500 mm |
Use with XINCHOR matched system components for full performance. TDS and MSDS available on request.
